Quick Details

  • Condition: New
  • Flow: 10Liters per min
  • Working Pressure: 0.4Mpa, ≤0.4Mpa
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: ZHONGNENG
  • Model Number: TYA-10
  • Usage: Lubricant Oil, Lubricant Oil
  • Voltage: 380V 50HZ 3P (Customizable), 380V-3Ph-50Hz Power(or as you need)
  • Power(W): 12-24KW
  • Dimension(L*W*H): 238*150*210 CM
  • Weight: 800-1600KGS
  • Certification: CE ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • flow rate: 600liter per hour
  • Color: green
  • Vacuum Degree: -0.06 ~ -0.095 Mpa
  • Water Content: ≤80 PPM (without free carbon)
  • Demulsification Value: New Oil ≤ 15min, Running Oil ≤ 30min
  • Working Without Trouble: ≥ 4000 hours
  • Cleanness: ≤6 NAS

Packaging & Delivery

Packaging Details wooden case
Delivery Time 20 days

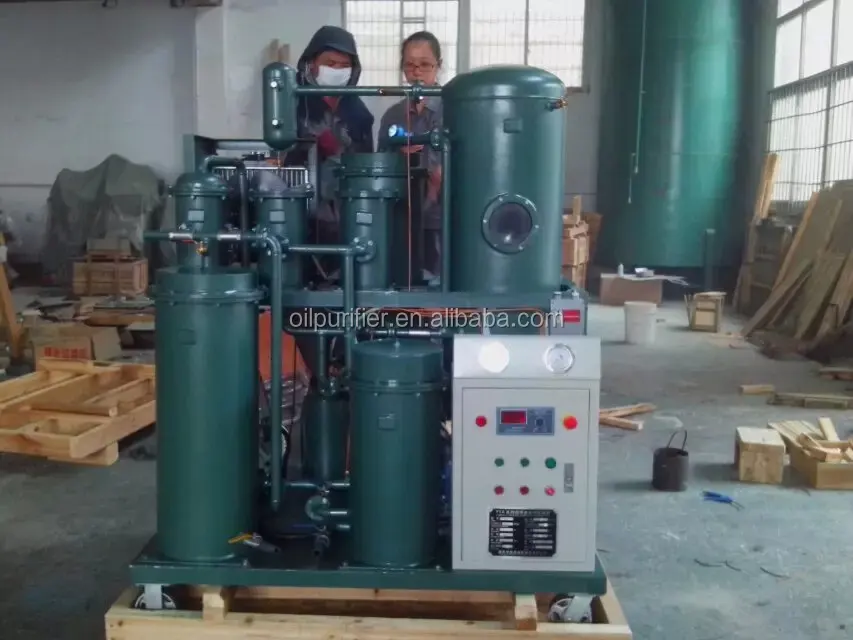

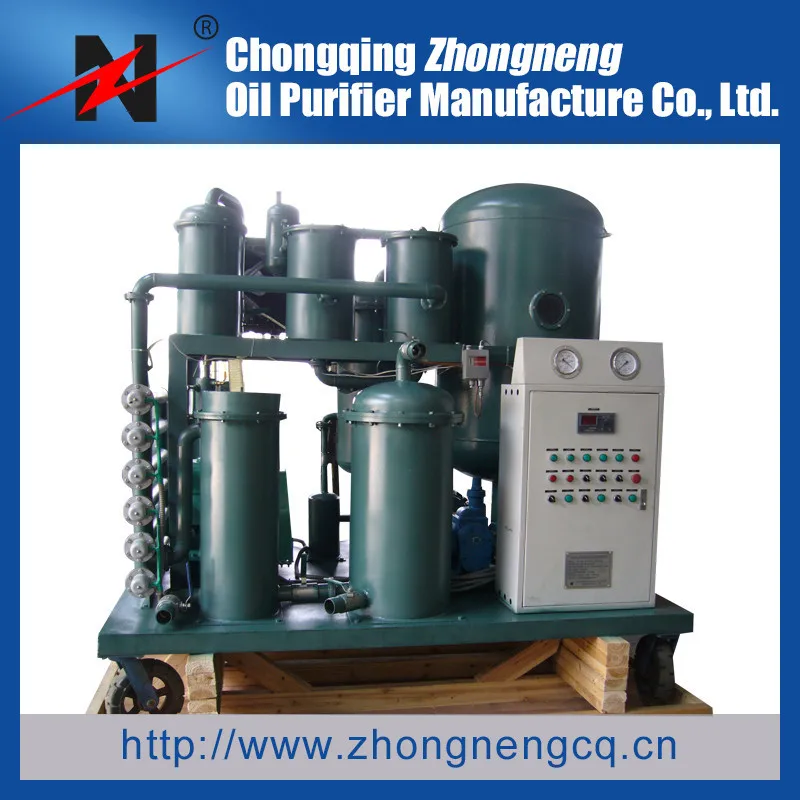

Lubricating Oil purification,oil recycling equipment


TYA series vacuum lubricating oil purifier is applied to recover and purify various high-precision lubricating oil, hydraulic oil, such as diesel oil, fuel oil, engine oil, motor oil, compressor oil,mechanical oil, coolant oil, machinery oil, gear oil, heat treatment oil and so on.

This machine can fast degas, dewater, and remove the impurity and the volatile matter (for example chloride components, solids, heavy metals, ammonia ,free carbon and so on).

It enhances the oil quality, restores the lubricating oil viscosity, augments the flash point and improves the operational performance.the machine is suit for many lines, such as the mine, metallurgy, electric power, transportation, manufactures and so on.



1. The Purifier could effectively remove the iron flake, dust, impurities, water and organic substance contained in waste oil, as well as organic and inorganic acid, enabling the recovery of performance of lubricant oil
2. It has a strong demulsifying capability, which could separate the large amount of water from oil and the minimal amount of water from oil.
3. Special filter-aid reagent is applied, especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil.



1. Strong capability of breaking emulsification.


2. The combination of coalescing separation and vacuum dewatering.


3. More Deeply and precisely FH rectangular filtering system.


4. Zhongneng’s unique technology with H.P.M high polymeric adsorbing material.






This machine can fast degas, dewater, and remove the impurity and the volatile matter (for example ethyl alcohol, gasoline, ammonia


and so on). Enhances the oil quality, restores the lubricating oil viscosity, flash point and improves the oil capability. Guaranteed the


hydraulic system, dynamic system and lubricating system running normally.

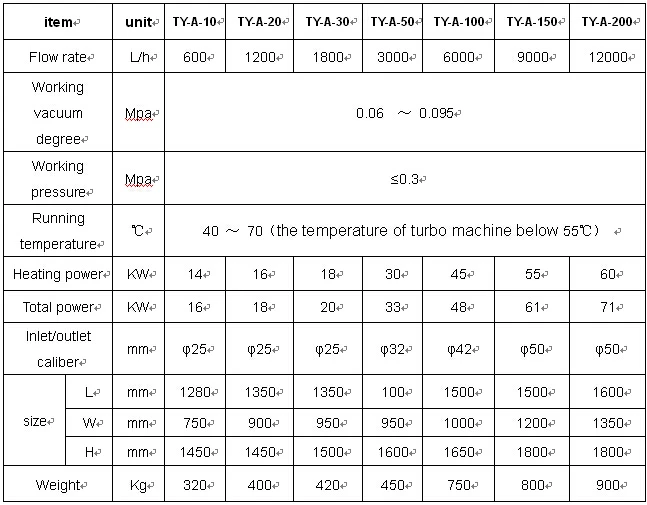

Technical Parameter



The dimension and weight will be changed with changing the technical specification.


 We are offering practical and functional products with competitive Price!!
If you have any question, Please Contact with us directly!!
